Modular rack system with four dampened aluminum threaded pillars & 1.18" thick MDF shelves with isolation platforms.
The S5 Series products are distinguished by shelves designed and decoupled on two levels. The main shelves, perforated in their central areas, are processed with embedded particulars made of steel. The secondaries shelves, instead, via their placement on our new steel cones, generate the decoupling designed for our innovative system studied for the contrast of component’s vibrations. In particular, when placed on their relative steel discs (S Series PADS), our traditional steel spikes download toward the ground the set of accumulated vibrations from the whole structure during the normal use. This works finely to provide high levels of functionality. The aluminum tubes, as well as for the S3 Series, are filled with damping material (not grainy) and through their secure fastening system allow anyone to adjust the rack with preferred heights.

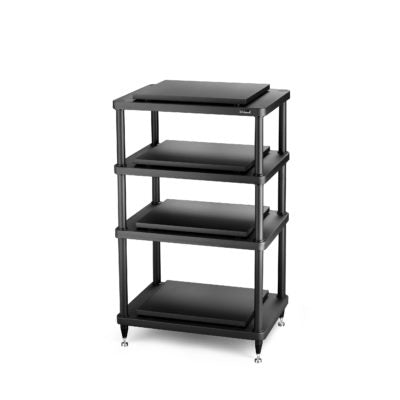

The S5 rack is modular---shown is the S5-4, and is priced accordingly. We ask that you call in to inquire about configuration options and pricing!
Specifications:
-
Tubes: painted aluminum (anodized) filled with damping material;
-
Hardware: stainless steel;
-
Terminals: Iron AVP treated with zinc to eliminate the risk of rust;
-
Shelves: MDF wood, polymer laminate.
-
Sustainability for each shelf: 60 kg tested.
-
Weight: 37 Kg | 81.57 lbs

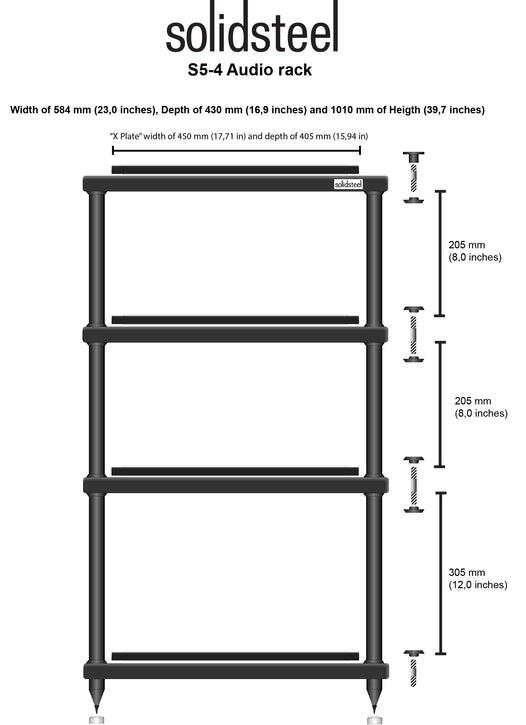

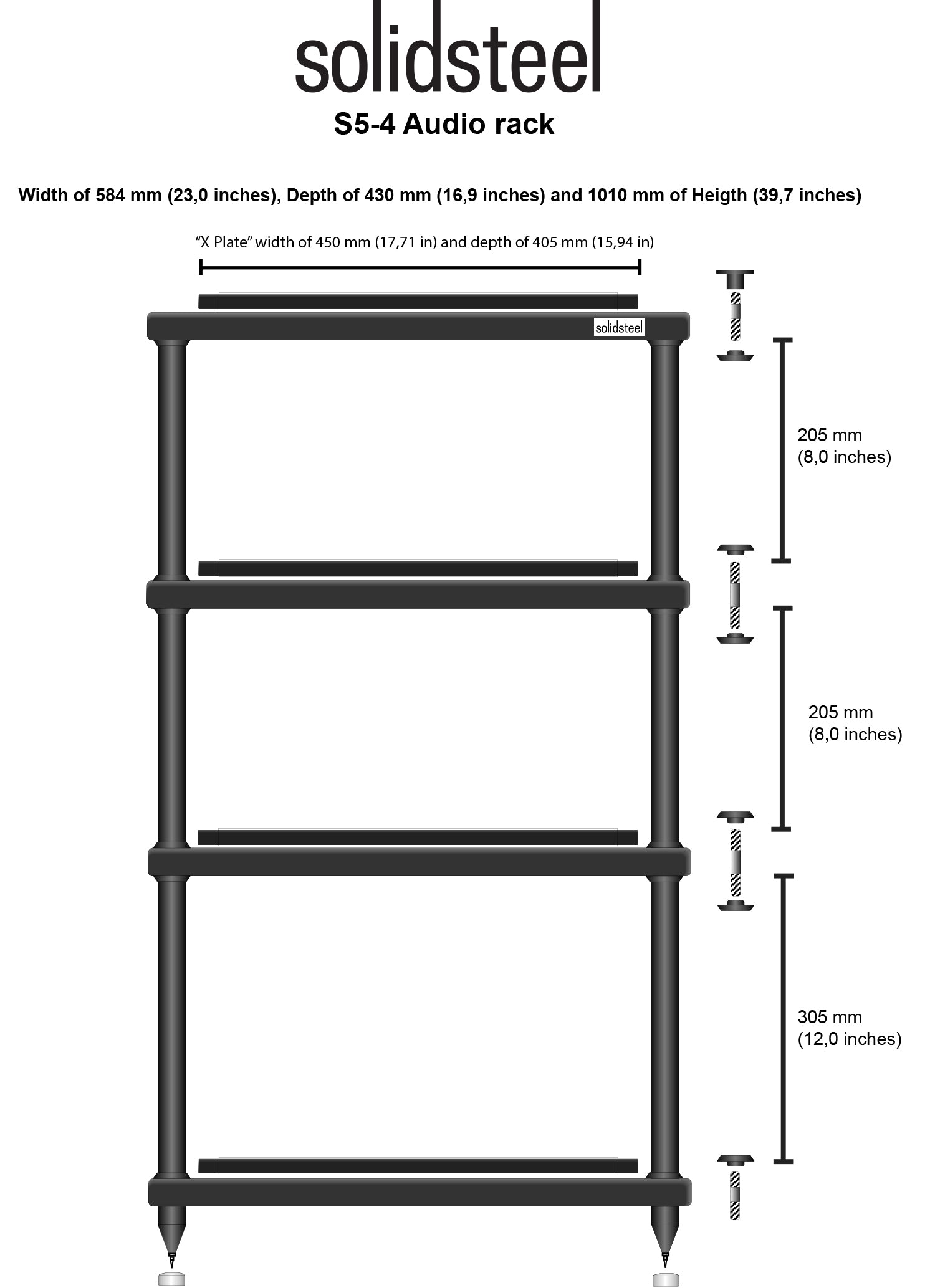

Outer Dimensions mm | inch:
-
W 584 (23) H 1010 (39,7) D 430 (16,9)
Inner Shelves Dimensions mm | inch:
-
W 500 (19,7) H 205/205/305 (8/8/12) D 430 (16,9)
