Frequency response: +0-3db, 0.4hz to 200khz at rated output (balanced, 200k ohms load).
Distortion: less than .01% at 2v rms bal output.
Gain: main output: 12db balanced output, 6db se output. record out: 0db (processor input: 0db bal output).

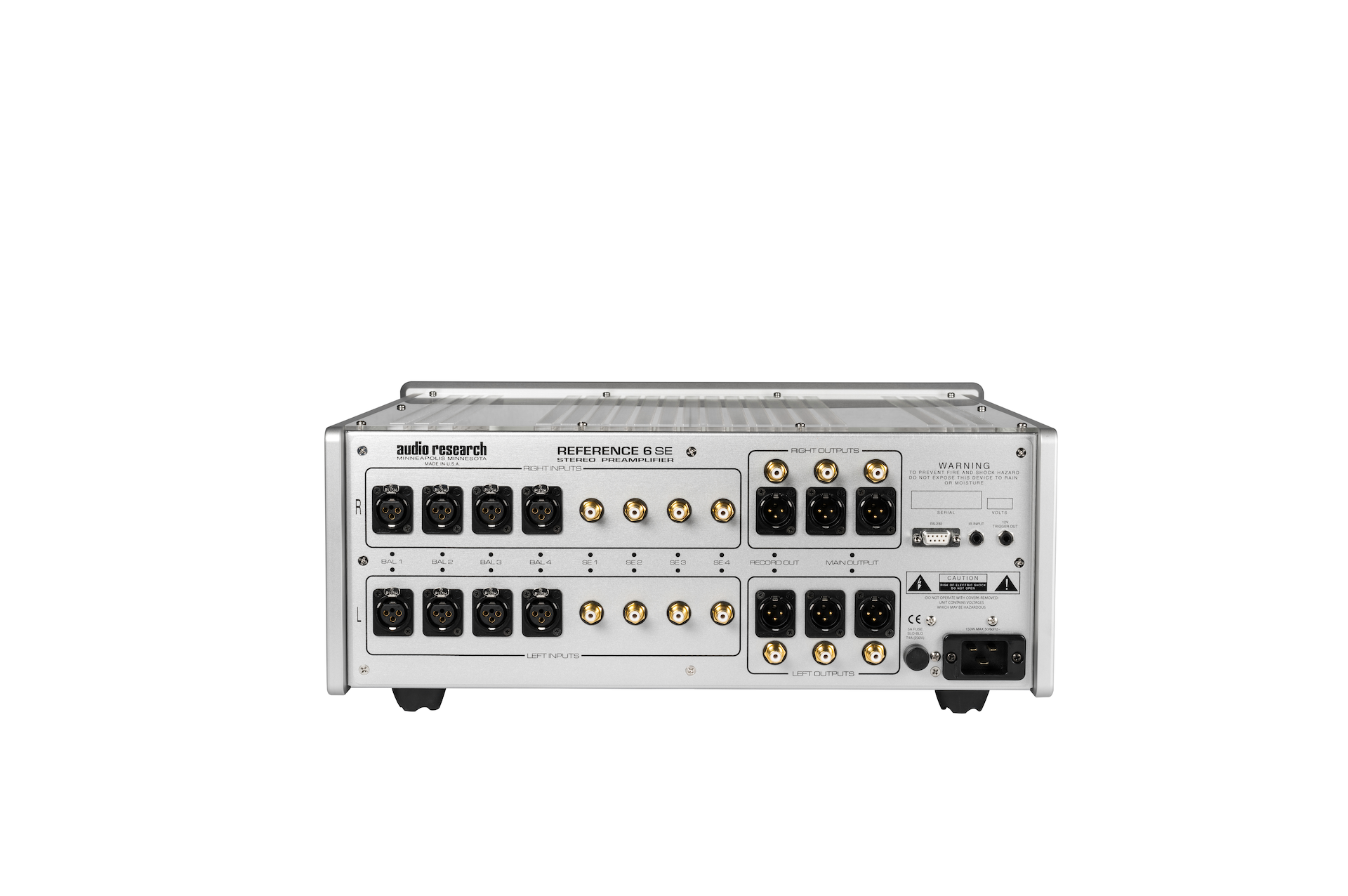

Input impedance: 120k ohms balanced, 60k ohms se. inputs: 4 balanced, 4 single-ended. assignable processor passthrough.
Output impedance: 600 ohms balanced, 300 ohms se main (2). 20k ohms minimum load and 2000pf maximum capacitance. outputs (3): 2 main, 1 record out (xlr and rca connectors).
Output polarity: non-inverting.
Maximum input: 18v rms bal, 9v rms se.
Rated outputs: 2v rms (1v rms se) into 200k ohm balanced load (maximum balanced output capability is 70v rms at less than 0.5% thd at 1khz).
Crosstalk: -88db or better at 1khz and 10 khz.
Controls: otary encoders: volume (103 steps), select input. push buttons: power, menu, enter, mono, invert, mute.
Power supplies: electronically regulated low and high voltage supplies. automatic 45 sec. warm-up/brown-out mute. line regulation better than .01%.
Noise: 1.7uv rms residual ihf weighted balanced equivalent input noise with volume at 1 (109db below 2v rms output.)
Tube complement: (6)-6h30p dual triodes, plus (1 each) 6550we and 6h30p in power supply.
Power requirements: 100-135vac 60hz (200-250vac 50/60hz) 130 watts. standby: 2 watts.
Dimensions: width: 19” (48 cm), height: 7.8” (19.8 cm), depth: 16.5” (41.9 cm)
