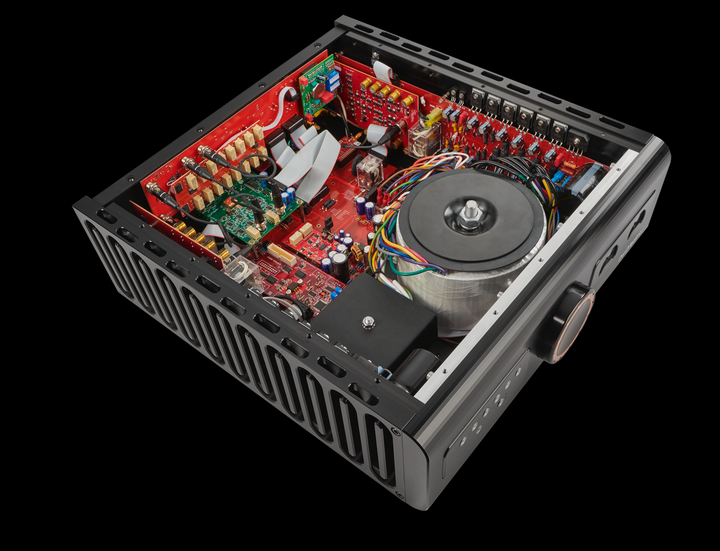

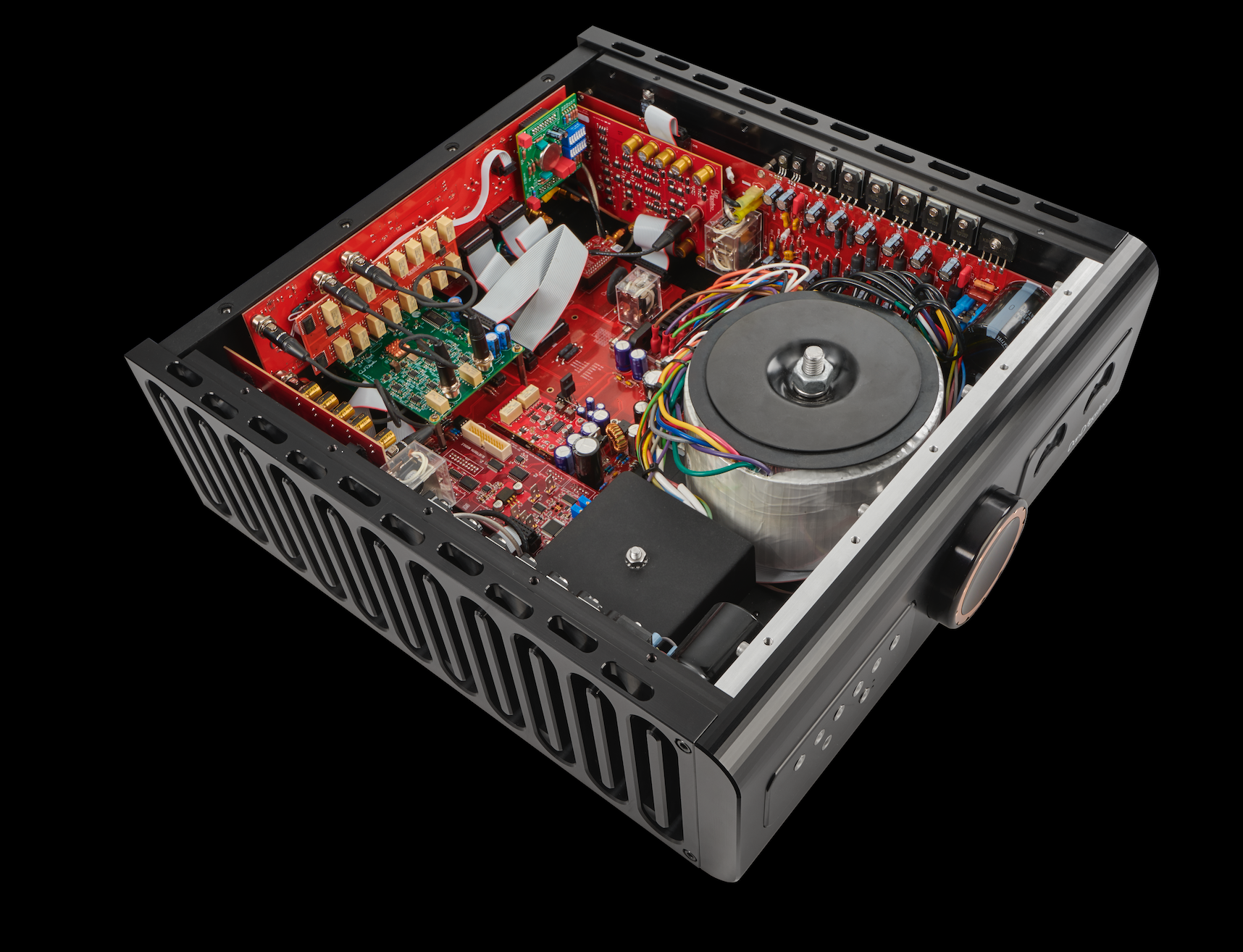

The heart and soul of the Progression Integrated Amplifier is essential Dan D’Agostino Master Audio Systems’ technologies including discrete, balanced, direct coupled circuitry married to a substantial output stage delivering 200WPC into 8 Ohms and 400WPC into 4 Ohms. The foundation of the Progression Integrated Amplifier is a traditional line stage integrated amplifier suitable for all analog sources except turntables. If the vinyl awakening has already captured your imagination, an optional phonostage module adds selectable moving coil compatibility. If a turntable is added in the future, the phonostage module can be added at a later date. For those listeners keen to incorporate digital playback within the same unit, an optional digital module, adding a full suite of capability, is also available. Eliminating external connections, gain stages, and additional components offers distinct sonic advantages. Coaxial, optical, and USB physical inputs join ethernet and wireless connectivity for in house network and internet streaming capability. Digital resolution includes support for files up to DSD256 and 24bit/192K PCM accuracy.
- Frequency Response: 1 Hz to 80 kHz, -0.5 dB / 20Hz to 20 kHz, ±0.01 dB
- Signal-to-Noise Ratio: 95 dB, unweighted / 75 dB, A weighted
- Total Harmonic Distortion: 200W @ 8Ω .015% @ 1 kHz
- Input Impedance: 100kΩ
- Output Power: 200 Watts @ 8Ω, 400 Watts @ 4Ω
- Output Impedance: 0.1Ω
- Outputs: 1 pr balanced XLR stereo , 5-way speaker binding posts
- Dimensions: 17.25 x 6.63 x 20.13 in / 43.8 x 18.8 x 51.1 cm
- Weight: 57 lb / 26 kg

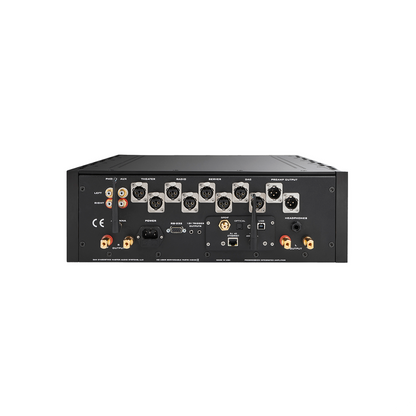

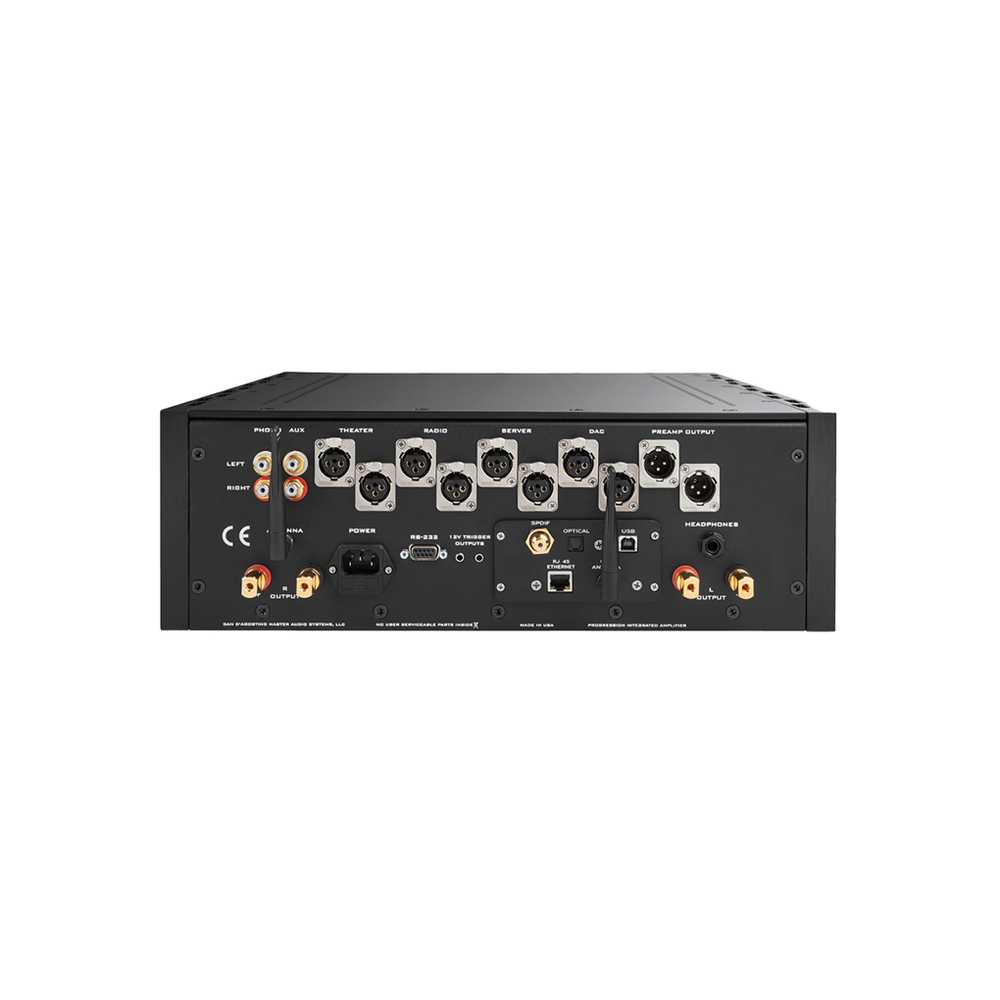

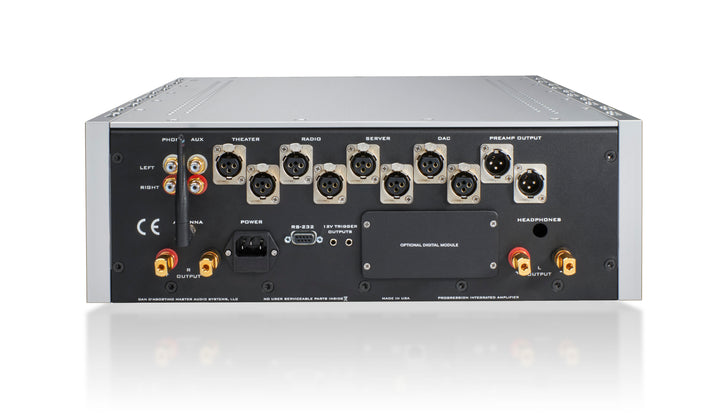

- 4 stereo pairs of balanced XLR, 2 stereo pairs of single-ended RCA
- Digital Inputs (w/DAC Module Installed): 1 USB B type, 1 Optical, 1 SPDIF, coaxial 1, Ethernet RJ45, 1 WiFI
- Control: RS-232
