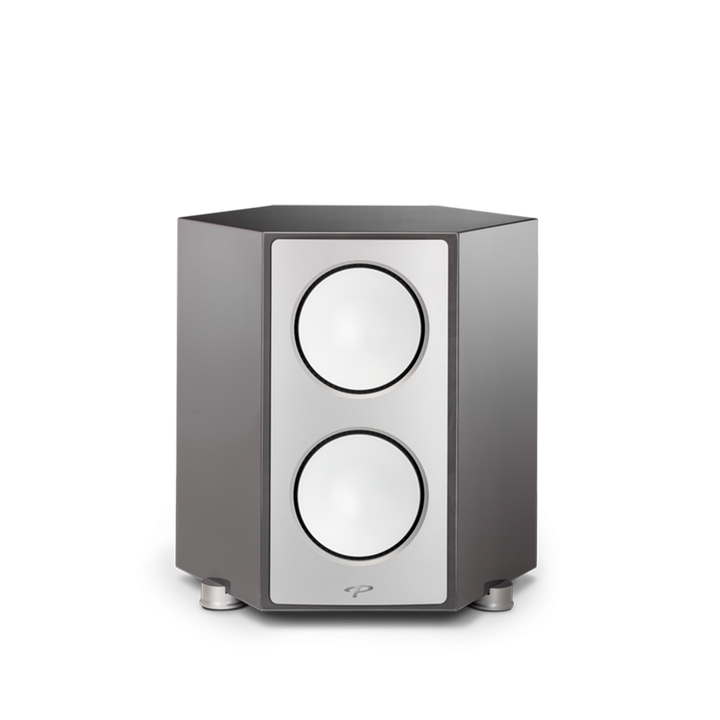

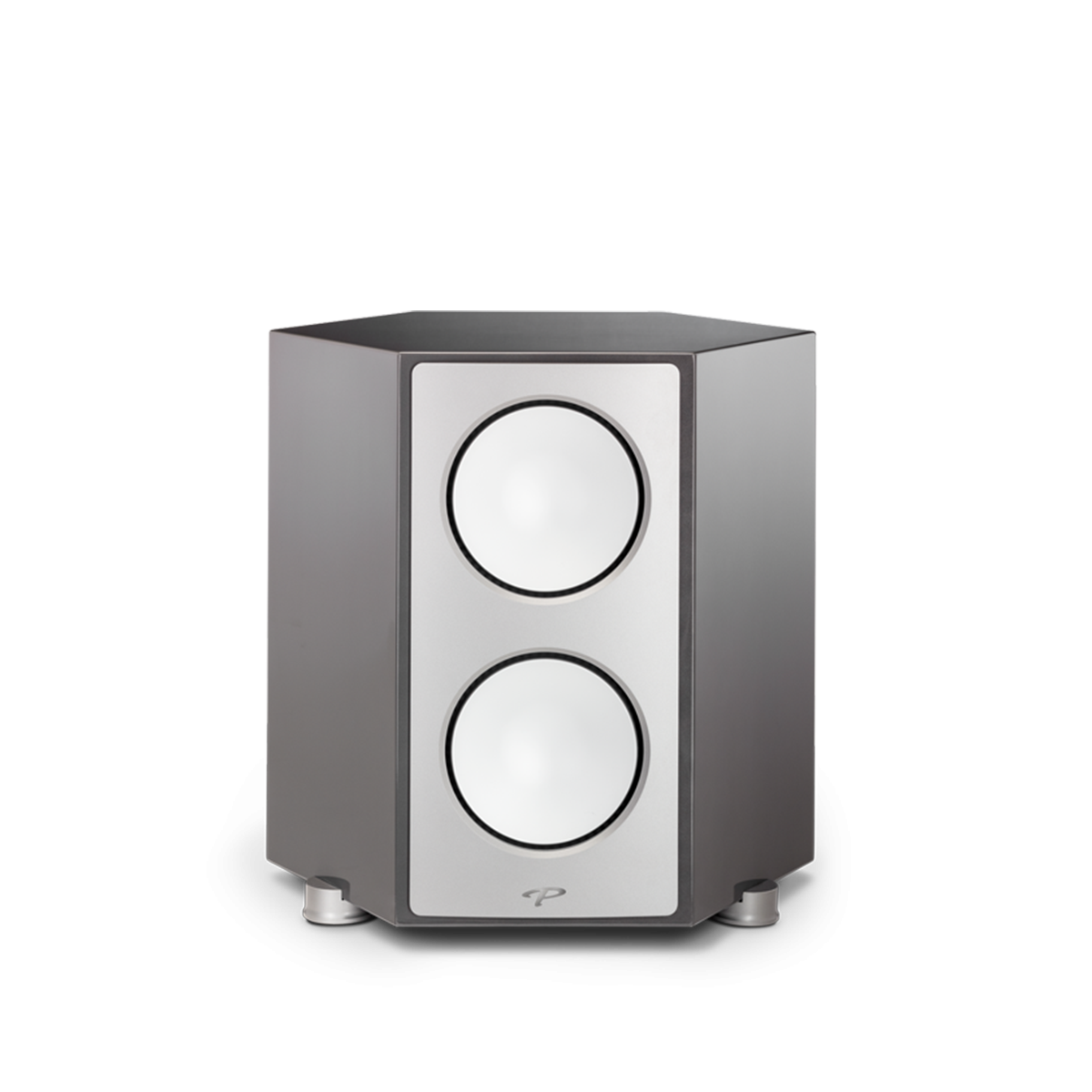

Persona Sub is specially designed to match the aesthetics of the Persona Series, and to deliver a wallop of deep bass effects.
Six 8-inch woofers, featuring durable overmolded surrounds, are radially aligned in Paradigm’s signature hexagonal Vibration- Canceling Design Architecture enclosure. Powered by a 1700W Ultra-Class-D amplifier (capable of 3400W dynamic peaks), and an array of Paradigm bass enhancements like advanced DSP, efficient venting and superior power supply switching, this sub adds depth, clarity and bass precision to your Persona audio system. Achieve well-blended musical bass down to an astonishing 12Hz. Use two or more for a truly moving audio experience!
SPECIFICATIONS
| DESIGN |
6-driver, acoustic suspension hexagonal vibration cancelling subwoofer |
| CROSSOVER |
Low pass crossover: Variable 35 Hz - 150 Hz; Bypass Option; variable 0-180 deg phase |
| AMPLIFIER |
1,700 W RMS (3,400 W Dynamic Peak) |
| FREQUENCY RESPONSE ON-AXIS
|
+/- 2dB from 19Hz - 220Hz (by pass option) |
| FREQUENCY RESPONSE ON-AXIS
|
±3 dB 15Hz – 235Hz |
| ROOM CORRECTION |
Anthem Room Correction - ARC™, with included calibrated microphone |
| LOW FREQUENCY EXTENSION |
12Hz |
| LOW FREQUENCY DRIVER |
Six 8" (203mm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surrounds, 1-1/2" (38mm) four-layer long-excursion voice coils, high-temperature composite Nomex® formers, advanced spiders, 9.2-lb (4.16 kg) hard ferrite magnet / mot |
| SENSITIVITY ROOM / ANECHOIC |
100 mV (mono) / 100 mV (mono) |
| FREQUENCY RESPONSE 30° OFF-AXIS
|
+/- 2dB from 19Hz - 220Hz (by pass option) |
| IMPEDANCE |
RCA: 10k ohms; XLR: 20k ohms |
| DIMENSIONS HXWXD
|
20.5" × 20.25" × 18.875" (52.5cm × 51.2cm × 48cm) |
| WEIGHT |
118 lbs. (53.6 kg) |
| FINISHES |
High Gloss: Vanta Black, Harmony White Metallic Gloss: Aria Blue, Sonic Silver |
