PBJ

The famous"Peanut Butter and Jelly" Interconnnect

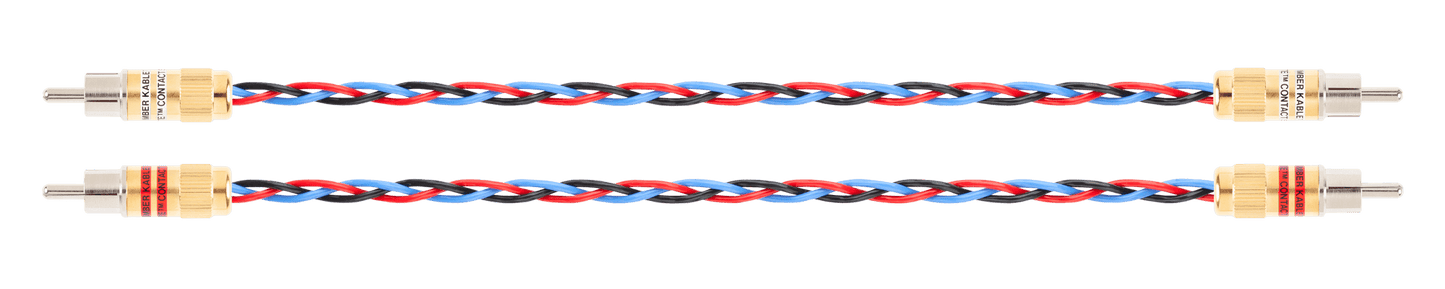

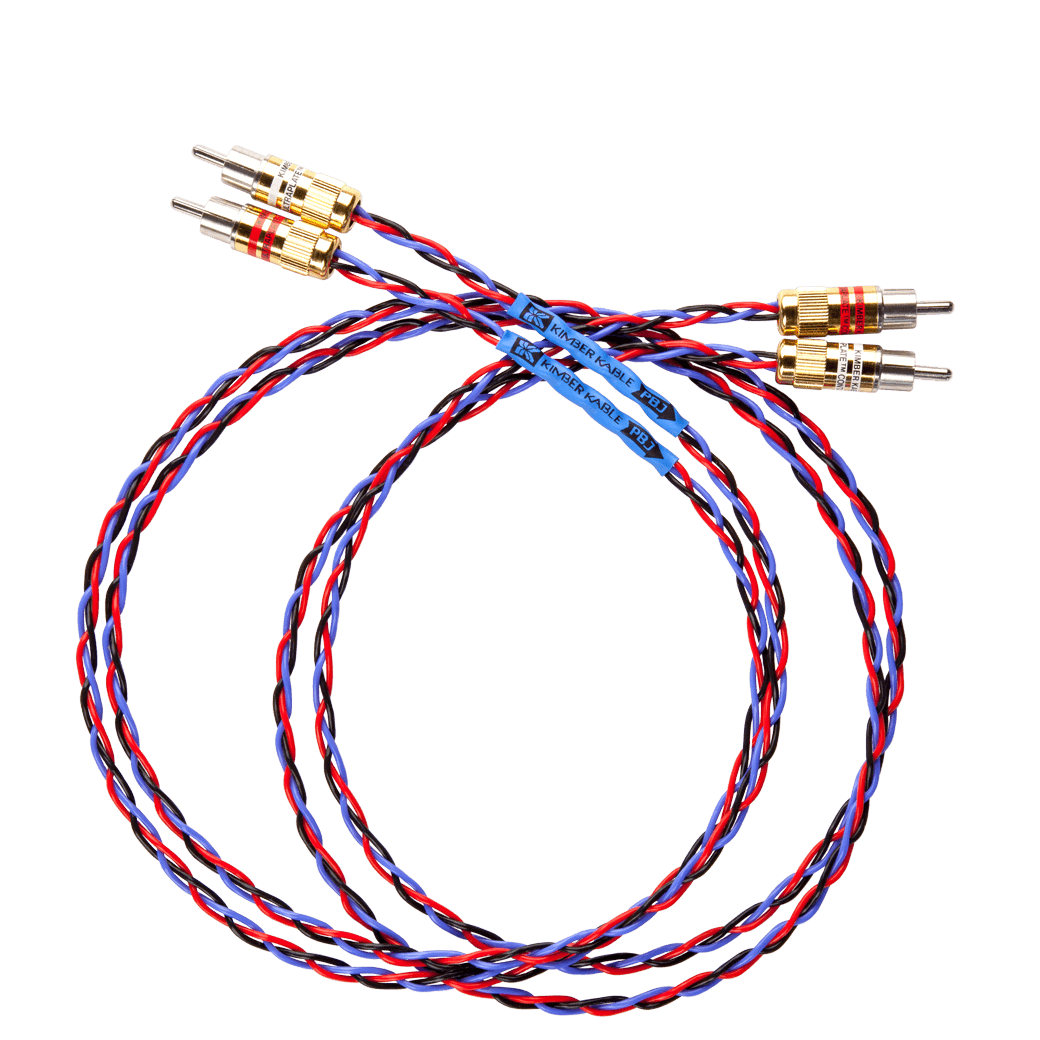

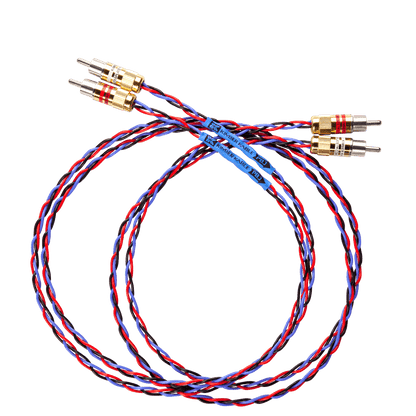

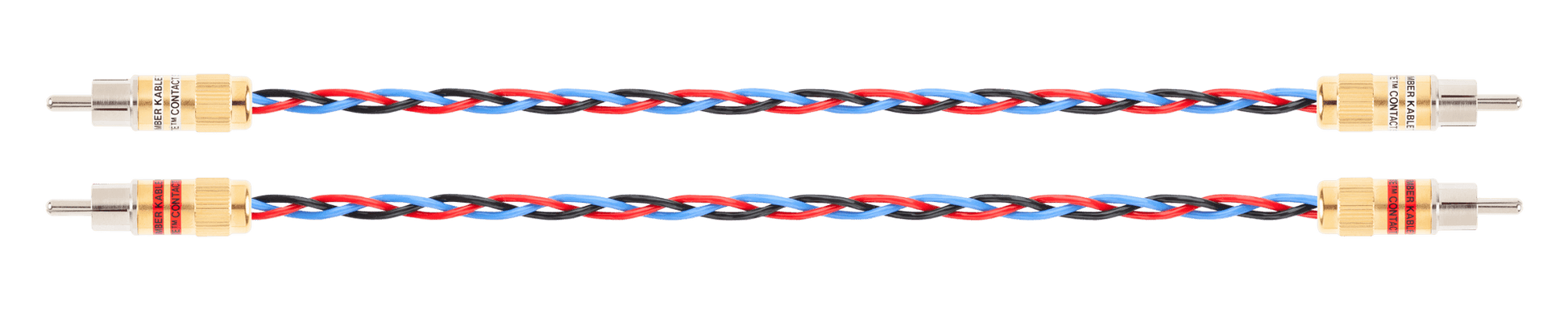

The highly acclaimed PBJ interconnect exhibits simple, elegant construction incorporating proven tri-braid field geometry, VariStrand™, Hyper-pure copper conductors and extruded fluorocarbon dielectric. PBJ has become a classic with performance that continues to be unmatched by competing cables. Tonally balanced with clear, articulate highs, accurate midrange, tight extended bass, and three dimensional sound staging are common descriptions echoed by surprised reviewers and satisfied customers. PBJ single-ended features our Ultraplate™ RCA type connector. WBT® RCA type connectors are also available. PBJ Balanced features "studio grade" XLR type connectors with silver plated contacts.

• Basic Electrical Specifications
• DUT: PBJ 1m terminated with Ultraplate RCA type connectors.
• (Cp) parallel capacitance: 55.0 pF @ 20 kHz
• (Ls) series inductance: 0.770 µH @ 20 kHz
• (Rdc) dc loop resistance: 0.053 Ω
• (Xt) total reactance: 0.097 Ω @ 20 kHz
• Frequency response ± 0.5 dB dc - 3 MHz

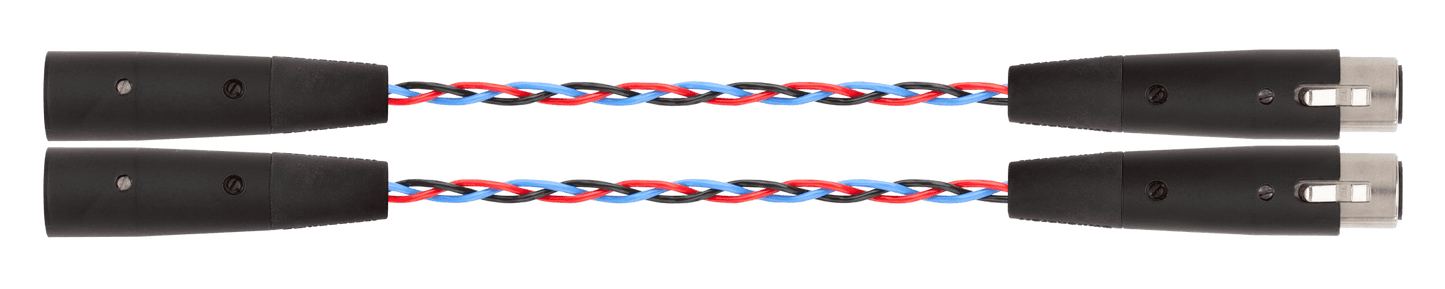

• PBJ Balanced
• DUT: PBJ 1m terminated with XLR type connectors.
• (Cp) parallel capacitance: 45.70 pF @ 20 kHz
• (Ls) series inductance: 1.01 µH @ 20 kHz
• (Rdc) dc loop resistance: 0.0836 Ω
• (Xt) total reactance: 0.128 Ω @ 20 kHz
• Frequency response ± 0.5 dB dc - 3 MHz

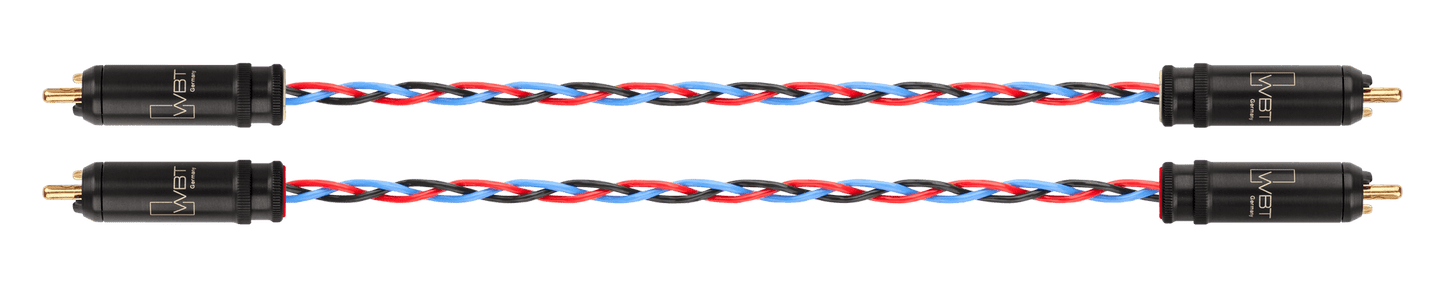

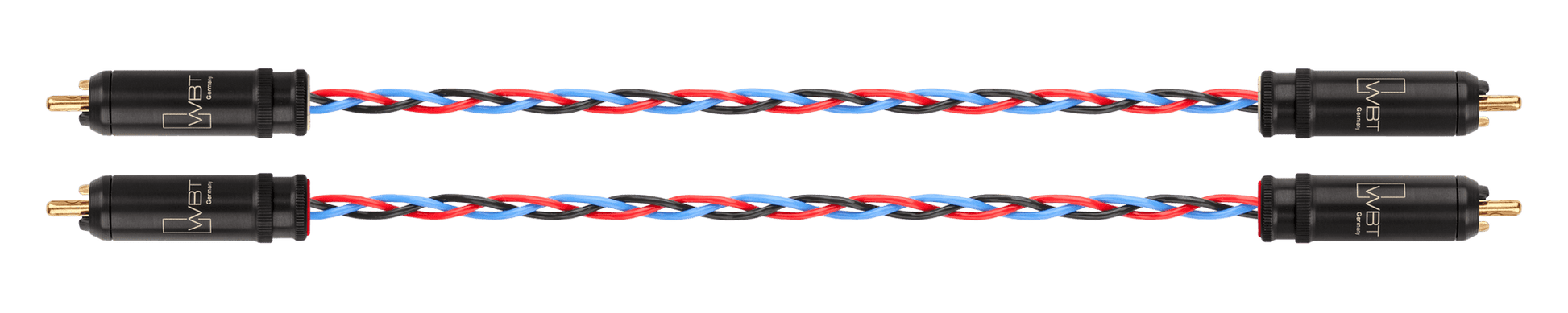

• Connector Options: Ultraplate, WBT-0114, XLR

Current price listed for PBJ 1.5M with your choice of terminations.

Available Termination in XLR Balanced, Ultraplate Standard, WBT 0114 Cu

Available Sizes in 0.5M, 0.75M, 1.0M, 1.5M, 2.0M, 3.0M, 4.0M, 5.0M, 6.0M

Call the store for Pricing!

.
