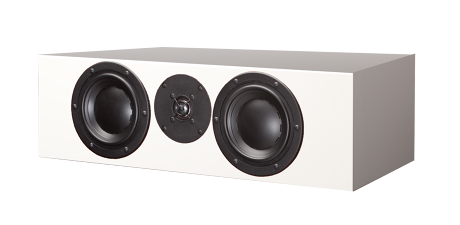

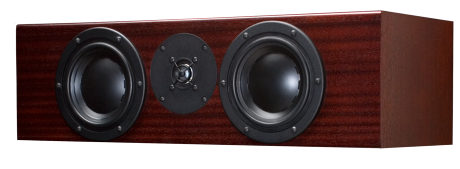

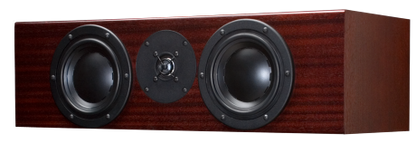

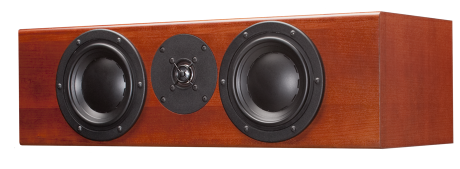

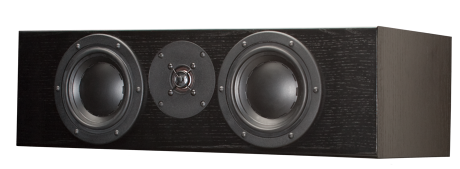

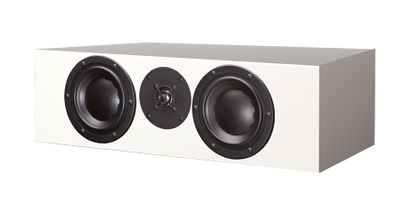

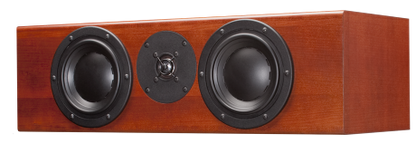

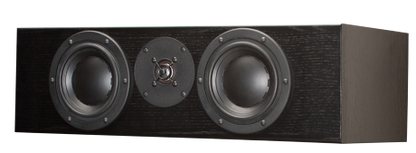

The Totem Model-1 Signature Center channel is our top echelon center speaker. The Model-1 Signature Center presents great off-axis dispersion, tremendous resolution and superb integration with other Totem’s models. The Model-1 Signature Center is fully shielded and one of the most compact full-range center channels available, offering the best musical performance of any center channel.
Design Highlights
- Compact hi-performance chassis
- Specially modified proprietary drivers
- Bass, speed and balanced holographic dynamic presentation
- Back panel “Signature units” medallion
- Solid twin-pair WBT gold-plated terminals
Technical Features
- Multi-layer borosilicate damping
- Lock mitered cabinet joints
- Exclusive hard-wired crossover
- High-quality drivers and wiring
Specifications
| Frequency Response: |
40 Hz – 20 kHz ± 3 dB |
| Recommended Power: |
30 – 150 W |
| Woofer: |
2 x 5.5″ / 13.97 cm with 3″ / 7.62 cm vented voice coil design |
| Tweeter: |
1″ / 2.54 cm alloy dome (low resonance frequency with double magnet) |
| Impedance: |
4 ohms |
| Sensitivity: |
87 dB |
| Dimensions (w x h x d): |
22.2″ x 6.5″ x 9.3″ / 56.39 x 16.51 x 23.62 cm |
| Placement from rear wall: |
6″ to 5 feet |
| Placement distance apart: |
N/A |
| Break-in Time: |
70-100 hours |
| Crossover Frequency: |
2.4 kHz, 2nd order |
| Speaker Terminals: |
Bi-Wireable Gold WBT |
| Weight: |
24.55lb / 11.16kg |
