Revel
F328Be
F328Be
Regular price
$26,000.00 CAD
Sale price
$26,000.00 CAD
Regular price
Unit price
/
per
Description

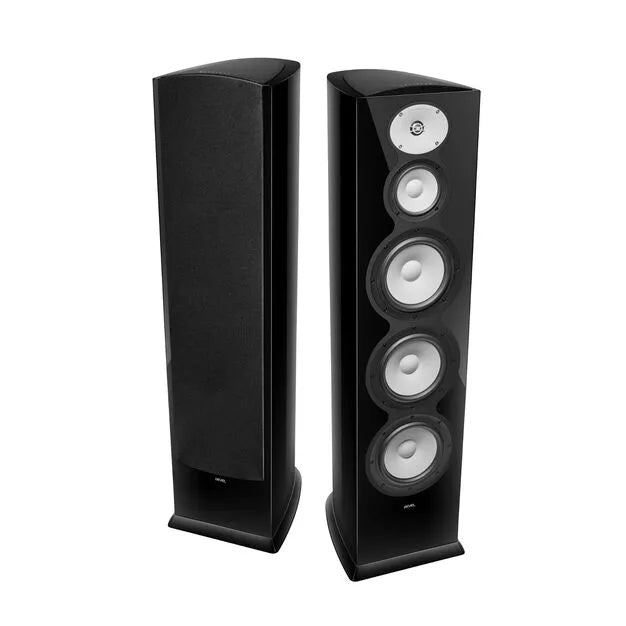

The Revel F328Be is the flagship floorstanding loudspeaker from our award-winning PerformaBe series.
The F328Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful all-new tweeter and 6th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.
F328Be Highlights
-
Flagship Floorstander for the PerformaBe Range
-
1-inch Beryllium Dome Tweeter
-
6th-generation Acoustic Lens Waveguide
-
Deep Ceramic Composite (DCC) Cone Midrange and Woofers
-
High-order Crossovers with Film Capacitors and Air Core Inductors
-
Magnetically Attached Grilles
-
4 Premium High-gloss Finishes Available
General Specifications
| Type | 3-way triple 8" floorstanding loudspeaker |
|---|---|
| Low-frequency transducer | Three 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames |
| Midrange transducer | 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame |
| High-frequency transducer | 1" (25mm) Beryllium dome, with acoustic lens waveguide |
| Recommended amplifier power range | 50 – 300 watts |
| Frequency response | 26Hz - 40kHz (-6dB) |
| Low-frequency extension | 24Hz (-10dB); 26Hz (-6dB); 35Hz (-3dB) |
| Nominal impedance | 8 ohms |
| Sensitivity (2.83V/1m) | 91 dB |
| Crossover frequencies | 240Hz; 2.1kHz |

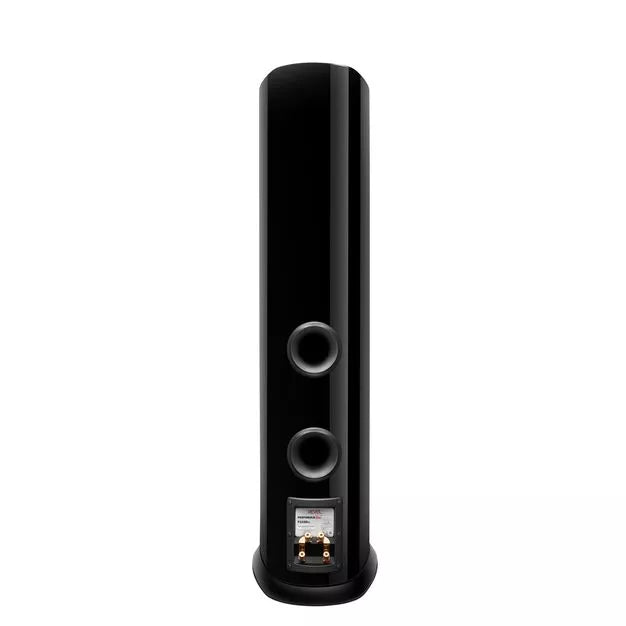

| Enclosure type | Bass-reflex via dual rear-mounted ports |
| Inputs | Dual gold-plated binding posts with shorting straps |

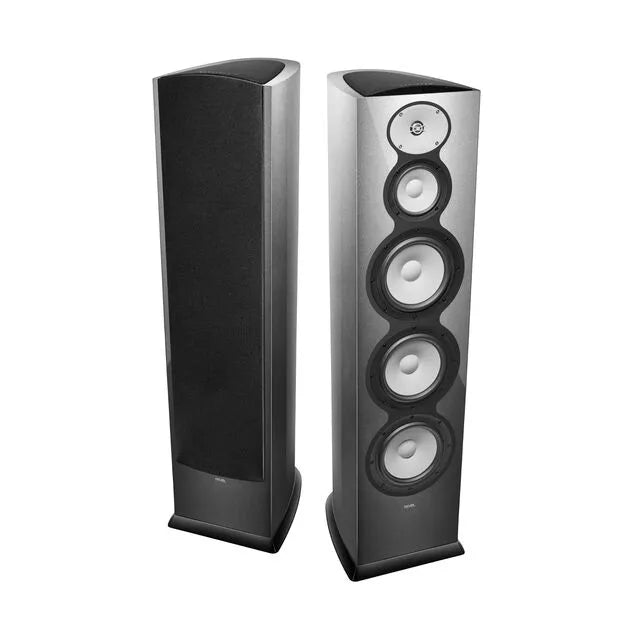

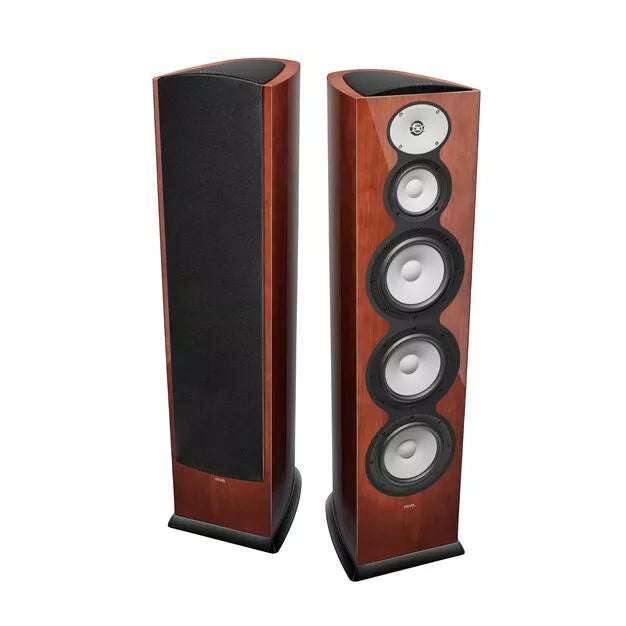

| Available high-gloss finishes | Black, White, Metallic Silver, and Walnut |
| Dimensions with base and grille (H x W x D) | 50.9" x 13.5 " x 17.6" (1294mm x 341.3mm x 448.5mm) |
| Product Weight | 112.6 lbs (51kg) |
