DAC 501

Unveil the true sound of audio material with the compact DAC501 digital-to-analog converter. The DAC501 goes beyond simply reproducing your sound - it also lets you correct frequency imbalances in your room and adjust the sound to better suit your preference.

SPECS

Power
Mains voltage: 100…120 V or 200…240 V, automatic voltage selection

Fuse rating: 500 mA slow blow at 100…120 V, 250 mA slow blow at 200…240 V

Power consumption: 25 VA max.

Power consumption in standby: 2.2 VA max.

Size
Depth: 30 cm
Width: 18,8 cm
Height: 6,6 cm
Height with feet: 7,2 cm

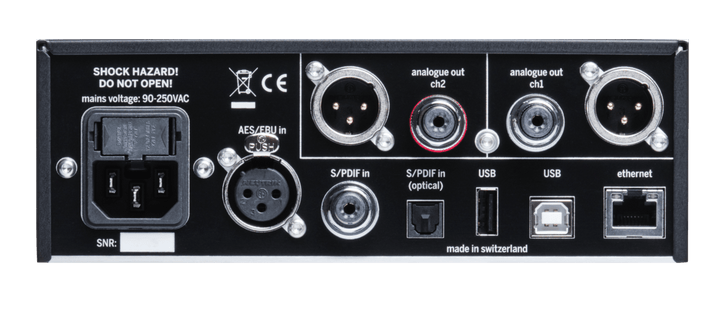

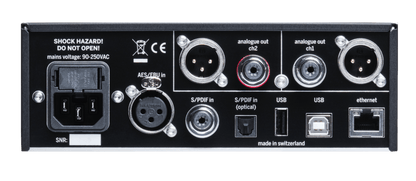

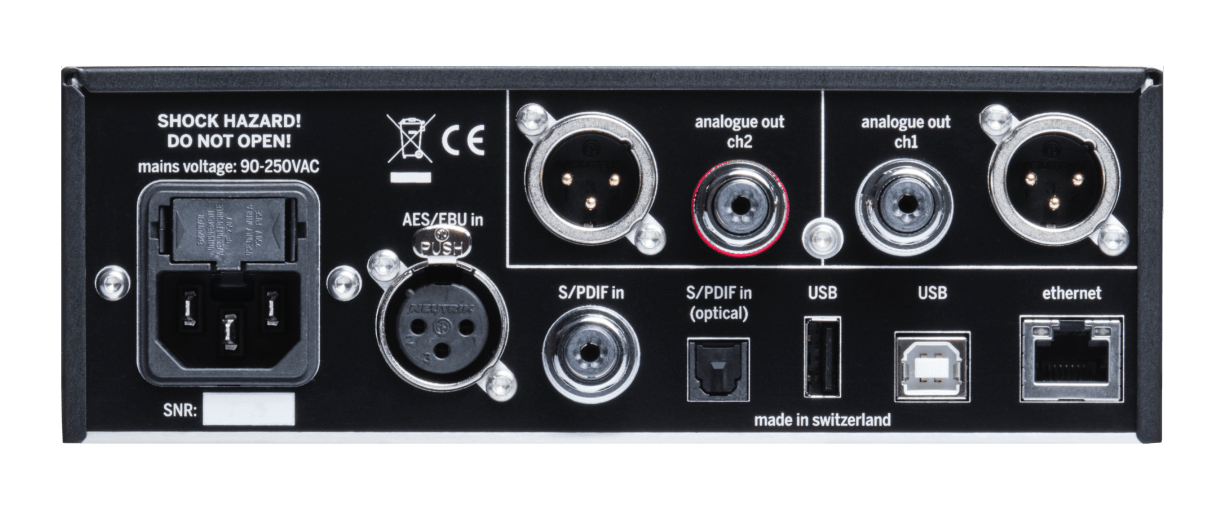

Digital Inputs
(1) XLR connector
(1) RCA connector
(1) TOSLINK connector (optical)
(1) USB type B connector
(1) RJ45 Ethernet connector

LINE OUTPUT

XLR Output with a 0 dBFS sine wave input:
0 dB setting: 6.8 Vrms +18.9 dBu
-10 dB setting:
2.2 Vrms +8.9 dBu
-20 dB setting: 0.68 Vrms -1.1 dBu
-30 dB setting: 0.22 Vrms -11.1 dBu

RCA Output with a 0 dBFS sine wave input:
0 dB setting: 3.4 Vrms +12.9 dBu
-10 dB setting:
1.1 Vrms +2.9 dBu
-20 dB setting: 0.34 Vrms -7.1 dBu
-30 dB setting: 0.11 Vrms -17.1 dBu


HEADPHONE OUTPUT

Headphone output with a 0 dBFS sine wave input:
0 dB setting: 6.8 Vrms +18.9 dBu
-10 dB setting:
2.2 Vrms +8.9 dBu
-20 dB setting: 0.68 Vrms -1.1 dBu
-30 dB setting: 0.22 Vrms -11.1 dBu



Available in 2 Channel or 4 Channel

2 channel: $12,495

4 channel: $14,295
