9000NS

Digital Face
The 9000N answers the 9000 series and its natural progression towards a more premium hi-fi solution while answering overwhelming customer demand for a solidly built and impeccably finished streaming component.

Flexible and Capable

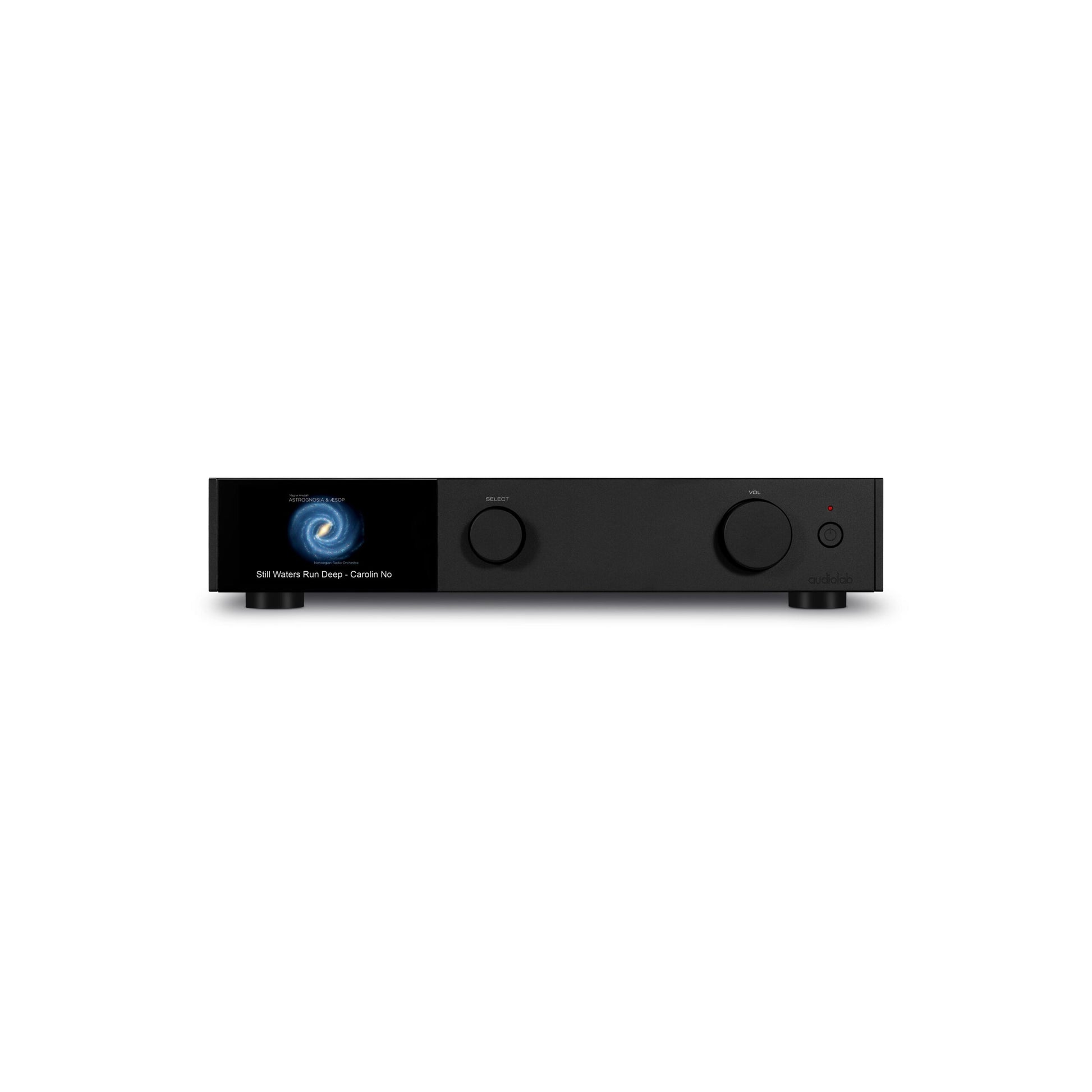

The format of the 9000N reflects the crisp elegance of the 9000A and matching CDT. Equipped with rotary controls and an absence of buttons (except for the power switch), the 9000N also implements the 4.3in color screen, as found in the rest of the series – the perfect window for presentation for your digital music files… including full-color album artwork!

Developed to be the perfect digital streaming companion for the flagship audiolab 9000 series.

• Supports Ethernet & Wi-Fi streaming with a max sampling frequency 768kHz/32bit.
• Stereo analog XLR & RCA outputs utilizing the renown ESS Sabre ES9038Pro 32bit DAC.

The audiolab 9000N App Features:
Native support for TIDAL, MQA, Qobuz and TuneIn Radio Tidal MQA icons to easily identify high-res music Qobuz high-res icons to identify high-res music Volume control High-resolution album artwork display Artwork caching Intelligent search functionality Multiple Playlist complications & functionality Multiple tag handling Composer tag support Album-grouping in playlist Automatic internet links to artists / album / songs Saving and restoring of playlists (including Tidal and Qobuz)

• Model: 9000N
• General Description: Network Player

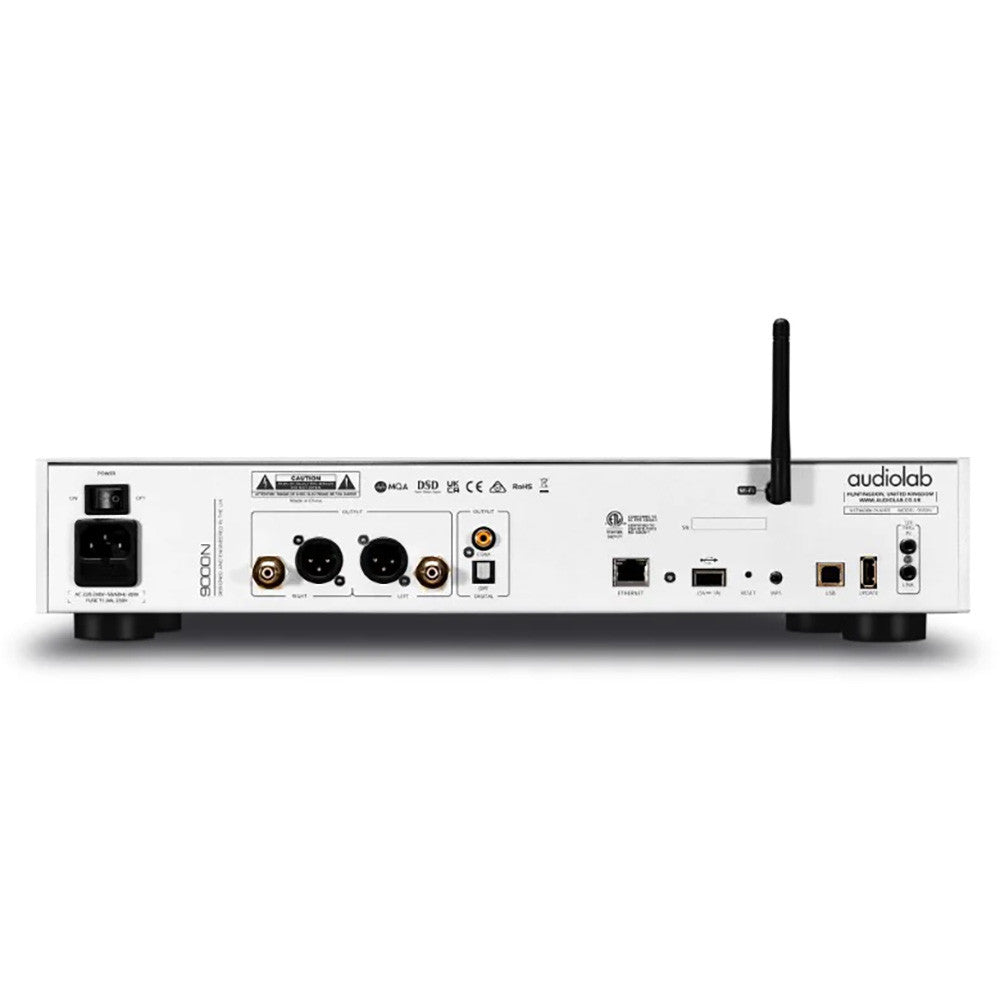

• Inputs
• 1 x Network Streaming
• 1 x PC USB (USB Type-B)
• 1 x Ethernet 10/100 / 1000 Base-T Ethernet
• 1 x 12V Trigger
• Outputs
• 1 x RCA (pair)
• 1 x XLR (pair)
• 1 x Optical
• 1 x Coaxial
• 1 x 12V Trigger (Link)
• Supported File Formats: DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed (lossy) Audio: MP3 MQA
• Sampling Frequency: PCM: 44.1kHz-768kHz (705.6kHz / 768kHz Fixed-point supported via Audiolab 9000N App streaming) DSD: DSD64, DSD128, DSD256, DSD512 (Native)

Digital Section

• Digital Output Voltage: 500mV +/- 50mVpp
• Output Impedance: 75Ω
• Frequency Response: -0.01dB (20Hz – 20kHz, ref.1kHz)
• Max. Sampling Frequency: 192kHz / 24bit
• Digital Outputs: 1 x Coaxial , 1 x Optical

D to A Converter

• Variable Output Voltage: 0 – 2.05V
• DAC: ES9038Pro
• Frequency Response: +/-0.5dB (20Hz – 20kHz, ref.1kHz)
• Total Harmonic Distortion: <0.001% (1kHz @ 2.05Vrms)
• Max. Sampling Frequency: 768kHz / 32bit
• Signal-to-noise ratio (A-weighted): >116dB(RCA), >120dB(XLR)
• Output Impedance: 120Ω

General

• Standby Power Consumption: <0.5W
• Net Weight: 13.67 lbs
• Gross Weight: 17.64 lbs
• Dimensions (inches)(W x H x D): 17.48 x 3.5 x 13.11
• Carton Size (inches)(W x H x D): 20.24 x 18.5 x 6.34
• Finish: Black / Silver
• Power Requirements (depending on region): 220-240V ~ 50/ 60Hz 100-120V ~ 50/ 60Hz
